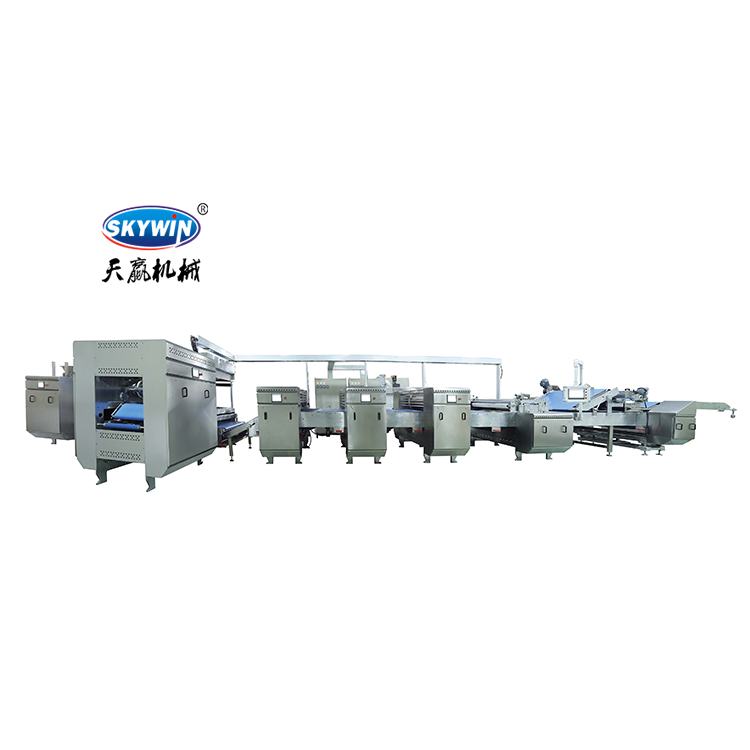

SIEMENS PLC Control Biscuits Making Machine

Brand Name : Skywinbake

Place of Origin : Guangdong, China

Certification : CE

Supply Ability : 3 Set/Sets per Quarter wafer biscuit making production line

Packaging Details : WOODEN CASE for Export Standard Suitable for Seaworthy

MOQ : >=1 Sets

Price : $100,000.00

Condition : New

Applicable Industries : Food & Beverage Factory, Food Shop, Food & Beverage Shops, Other

After Warranty Service : Video technical support, Online support, Field maintenance and repair service

Local Service Location : None

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Motor

Voltage : 380V 480V can be customized

Power : 12kw

Weight : 1300kgs

Warranty : 1 Year

Application fields : Bakery, Snack food factory

Raw material : Milk, Corn, Fruit, Wheat, Nuts, Soybean, Flour, Vegetables, Water

Output product name : biscuit and craker

Key Selling Points : Long Service Life

Function : Multi-function

Name : Automatic Biscuit Production Line

Biscuit Type : Compressed Biscuit

Material : 304 Stainess Steel

Keywords : Automatic Biscuit Making Mahcine

Port : GUAGNZHOU PORT / SHENZHEN PORT/ SHUNDE PORT

Contact Now

Product Overviews

Semi-Automatic Tray Type Hard And Soft Biscuit Production Line

Model-400 Tray Type biscuit machine is a high-speed automatic equipment will form biscuit from wheat dough into dough biscuit, biscuit machine suitable for rectangular biscuit,square and round, animal shape and other shapes depends on biscuit mould.The machine can reduce labor costs and waste, increase production, efficiency, quality and flexibility.

SIEMENS PLC Control Biscuits Making Machine

SIEMENS PLC Control Biscuits Making Machine

Use:

Making soft and hard biscuits

Layout:

Available and customized

Material:

Mainly 304 stainless steel

Warranty:

12 months

OEM:

Available

Automatic:

SIEMENS PLC control

Brand:

Skywin

Transducer:

SIEMENS Transducer

Bearing:

Main bearing are Chinese famous brand,other small use NSK

Air cylinder:

AirTAC

Detailed Images

SIEMENS PLC Control Biscuits Making Machine

1. Horizontal dough mixer

SIEMENS PLC Control Biscuits Making Machine

Oar material

 stainless steel
Stirring speed 25 rpm ,Max speed 60r/min
Capacity 150 kg / batch
Mixing time 5-25 minutes / time
Motor China famous quality Motor and Gear-box

2. Hard and soft biscuit forming part

Designed for forming soft and hard biscuit, with the changeable moulds.

Separated motors control the mould and conveyor belt.

SIEMENS PLC Control Biscuits Making Machine

This picture shows for hard biscuit making, with belt automatic checking device.

SIEMENS PLC Control Biscuits Making Machine

This picture shows for soft biscuit making, with belt automatically adjust device.

3.Separating and Scrap side return system

SIEMENS PLC Control Biscuits Making Machine

Function:Separate scraper and forming biscuit


1.Food grade PU conveyor belt with guides groove


2.Full 304 stainless steel frame


3.Pneumatic device automatic tracking and tension


4.Siemens inverter and PLC touch screen


5.Chinese famous brand motor and gearbox

4.Rack Oven (Gas or electric Rotary Oven)

SIEMENS PLC Control Biscuits Making Machine

Power 380V, 50Hz, 3 phase, 3.5kW
Oven Size 1820*2600*2450mm
Trays Size suitable to use 400x600mm (32 pcs) trays
Material

Full stainless steel body SS#430,

outside thickness 1.2mm, chamber thickness 1.5mm
Optional funtion

Steam Function
Total weight 850kg

SIEMENS PLC Control Biscuits Making Machine

5.Biscuit mould

SIEMENS PLC Control Biscuits Making Machine

SIEMENS PLC Control Biscuits Making Machine

Biscuit Sample

Biscuit Sample & Mould

SIEMENS PLC Control Biscuits Making Machine

SIEMENS PLC Control Biscuits Making MachineSIEMENS PLC Control Biscuits Making Machine

Related Products

Click the production which you are interested in ~~

Let's jump to another page to learn about them.

SIEMENS PLC Control Biscuits Making Machine SIEMENS PLC Control Biscuits Making Machine SIEMENS PLC Control Biscuits Making Machine

Tray Type PLC Cookie Machine Hard and Soft Biscuit Production Line Sandwich Connect Packing Machine

SIEMENS PLC Control Biscuits Making Machine SIEMENS PLC Control Biscuits Making Machine SIEMENS PLC Control Biscuits Making Machine

Wafer Production Line Horizontal Dough Mixer Rotary Moulder for Soft Biscuit Making

Packaging & Shipping

SIEMENS PLC Control Biscuits Making Machine

Step Process
Step 1 Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2 The plastic cushion packing machine (prevent bump).
Step 3 Plastic film packaging (to prevent ventilation).
Step 4 Wooden case / frame packaging (easy to transport).
Step 5 Tie the bandage outside of the wooden case (reinforcement overall).
